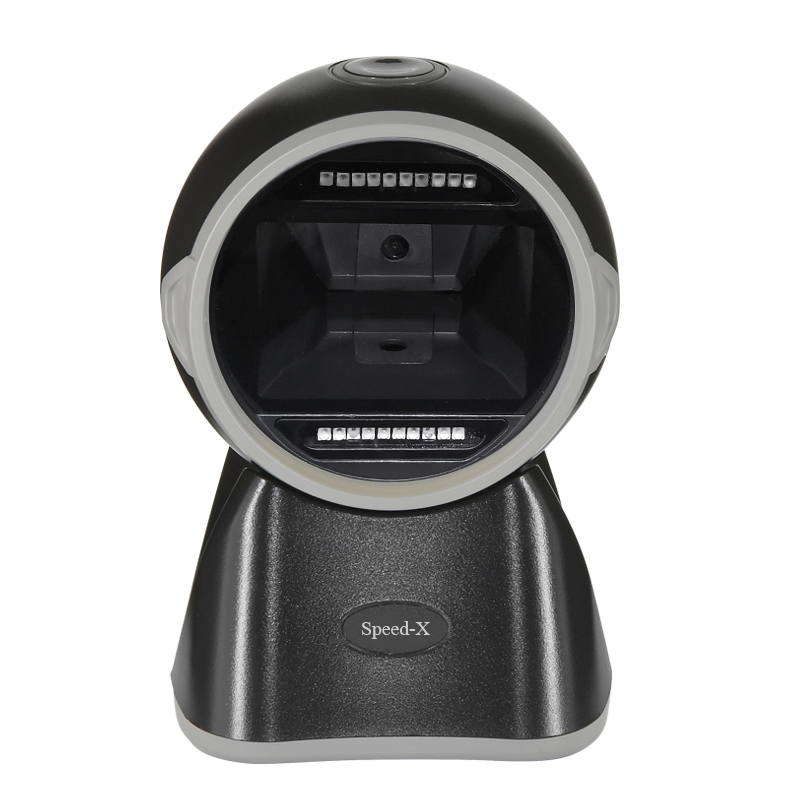

Speed-x 9400 2d Desktop Barcode Image Scanner
Speed-x 9400
2D Barcode Image Scanner
Technical Specifications |
|
Electrical Characteristics |
|
Interface Supported |
RS-232/USB HID KEYBOARD/USB VCP |
Input Voltage |
DC 5V±10% |
Current |
Max:200mA |
Optical Characteristics |
|
Image Sensor |
CMOS Array Sensor |
Sensor Resolution |
1280 X 800 Pixels |
Light Source |
RED LED |
Performance Characteristics |
|
Field of View |
58°(H),45°(V) |
Min Resolution |
1D?0.076mm/3mil?PCS 0.9? 2D?0.152mm/7mil?PCS 0.9? |
Min .PCS value |
?30% UPC/EAN 13?13mil? |
Language |
Multiple Languages |
Data Edition |
Support for custom data output |
Decode Capability |
1D : UPC-A /UPC-E / EAN-8 / EAN-13, ISBN, Code 39, Code 93, Code 128, Code 32,Codabar, MSI Plessey, Interleaved 2 of 5, Pharmacode , 2D : PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR Code, DotCode |
Physical Characteristics |
|
Dimensions |
100mm*95mm*158mm(L*W*H) |
Weight |
265g |
Indicator |
Beeper, LED |
Environmental Characteristics |
|
Temperature |
0°?50°C (operation) -10°?60°C (storage) |
Humidity |
20 - 85% (operation) ) 20 - 85% (storage) |
Shock Drop Test |
1.5m drop onto concrete surface |
