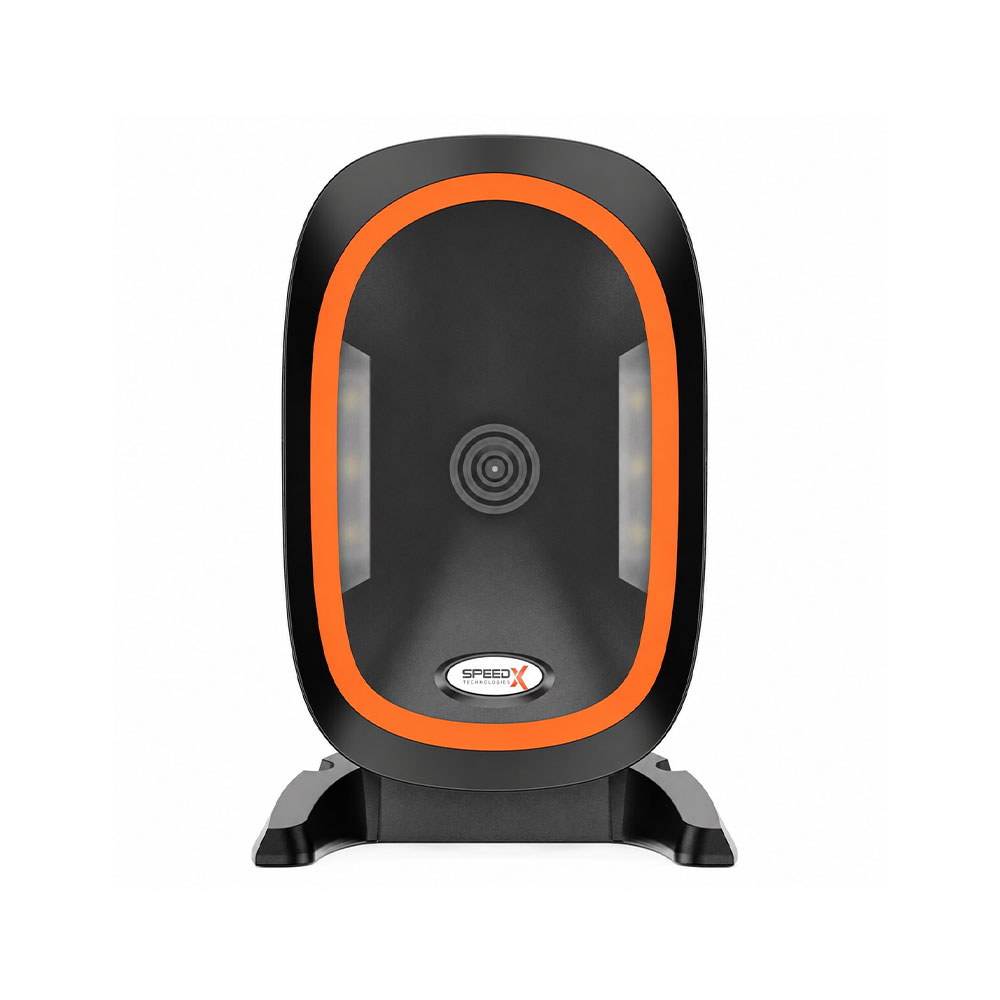

The Speed-X SX-BS9650 is a high-performance 2D desktop barcode scanner designed for fast, accurate, and hands-free barcode scanning. Featuring advanced CMOS imaging technology and automatic scanning, it quickly reads both 1D and 2D barcodes from printed labels as well as digital screens, making it ideal for retail stores, supermarkets, pharmacies, hospitals, payment counters, warehouses, and POS systems.

With USB and RS232 connectivity, the scanner offers true plug-and-play installation without requiring additional drivers. Its durable construction, rotatable base, dual-color LED indicators, and dual buzzer ensure reliable performance even in busy working environments. The scanner supports firmware upgrades and delivers stable, high-speed scanning for maximum productivity.

Key Features
High-speed 1D & 2D barcode scanning
Reads printed and digital screen barcodes
Automatic hands-free scanning
USB Keyboard, USB Virtual COM & RS232 interfaces
Plug & Play – No driver installation required
Advanced CMOS Global Exposure image sensor
Red & Blue LED indicators with dual buzzer alerts
Rotatable stand for flexible scanning angles
Durable 2-meter drop resistance (IP52 rated)
Supports online firmware upgrades
Technical Specifications
Model: SX-BS9650
Scanner Type: Desktop 2D Barcode Scanner
Image Sensor: CMOS Global Exposure (640 × 480 Pixels)
Scan Speed: 30 FPS
Interfaces: USB Keyboard, USB Virtual COM, RS232
Transmission: Wired
Cable Length: 1.8m
Power Supply: DC 5V
Dimensions: 100 × 82 × 150 mm
Weight: 200g (without cable)
Drop Resistance: 2m
Protection Rating: IP52


Supported Barcode Types
1D Codes:
UPC, EAN, Code 39, Code 128, Code 93, Codabar, Interleaved 2 of 5 (ITF), MSI, China Post, RSS, and more.

2D Codes:
QR Code, PDF417, Data Matrix, Aztec, MaxiCode, DotCode, GS1 DataBar Stacked, and more.

Ideal Applications
Retail Stores
Supermarkets
Convenience Stores
Pharmacies
Hospitals & Healthcare
POS Billing Counters
Payment Centers
Warehouses & Inventory Management
