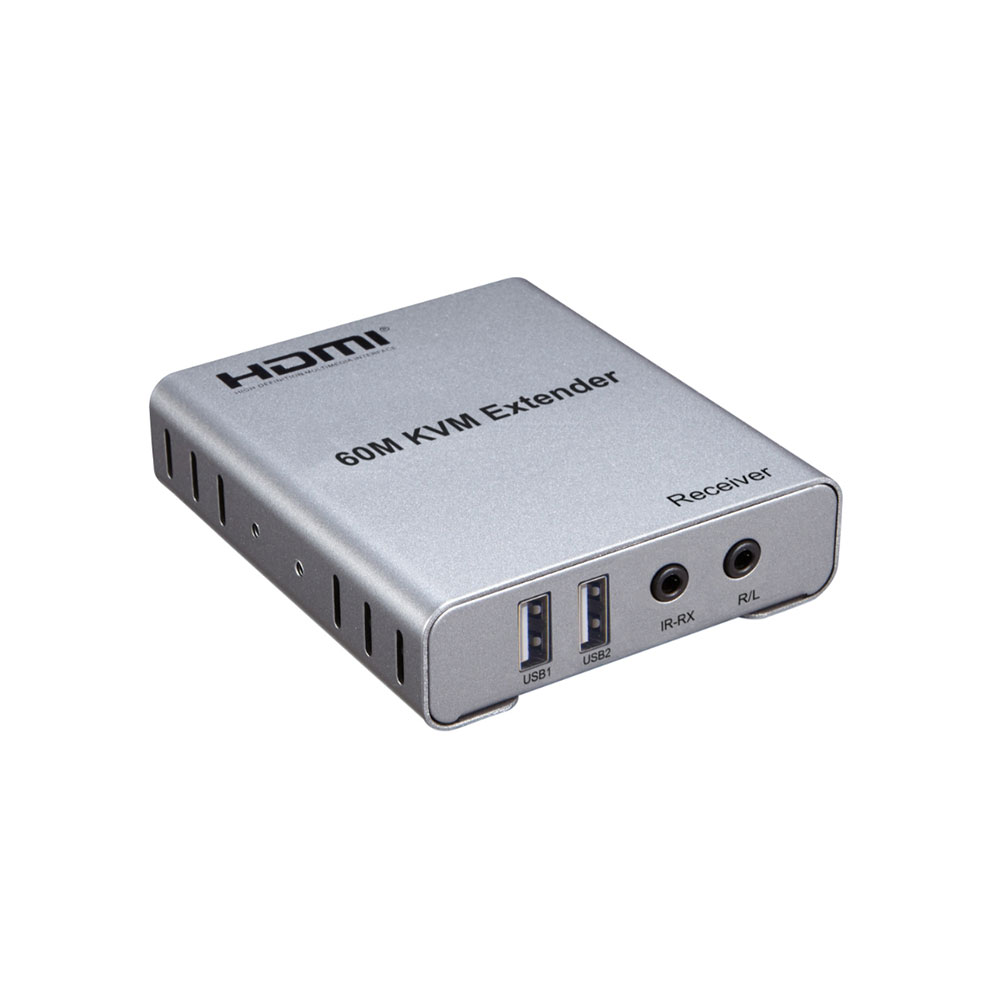

Product Description

The HDMI 60M KVM Extender with Audio is a reliable solution for extending Full HD HDMI signals up to 60 meters over a single Cat5e/Cat6 cable. Designed for professional AV installations, offices, classrooms, digital signage, security monitoring, and home entertainment, this extender delivers stable 1080P@60Hz video while providing remote USB keyboard and mouse control, IR pass-through, and stereo audio transmission.

Featuring built-in KVM functionality, the extender allows users to control a remote computer using a USB keyboard and mouse from the receiver side. The integrated IR remote extension enables convenient control of source devices from the display location, while 3.5mm stereo audio outputs on both the transmitter and receiver ensure high-quality audio playback.

Engineered with low power consumption and high operational stability, this HDMI extender supports EDID switching between 720P and 1080P for improved display compatibility. Installation is quick and simple with plug-and-play connectivity, making it an ideal choice for long-distance HDMI and KVM applications.

Key Features
Extends HDMI signals up to 60 meters over Cat5e/Cat6 cable
Supports Full HD 1080P @ 60Hz video resolution
Built-in USB KVM for remote keyboard and mouse control
IR pass-through for remote source device operation
3.5mm stereo audio output on both TX and RX units
Supports EDID switching (720P / 1080P)
Low power consumption with stable signal transmission
Plug-and-play installation

Ideal for conference rooms, classrooms, CCTV systems, control centers, digital signage, and home theaters.


Specifications
Transmission Distance: Up to 60m (Cat5e/Cat6)
Maximum Resolution: 1920 × 1080 @ 60Hz
Supported Resolutions: 1080p, 1080i, 720p, 576p, 480p
Maximum Bandwidth: 150MHz
Maximum Data Rate: 4.5Gbps
Input HDMI Cable Length: Up to 10m
Output HDMI Cable Length: Up to 15m
Power Supply: DC 5V/1A
Operating Temperature: -15°C to +45°C
Dimensions: 94 × 84 × 24mm

Package Includes
1 × HDMI KVM Extender Transmitter (TX)
1 × HDMI KVM Extender Receiver (RX)
1 × IR Receiver Cable
1 × IR Transmitter Cable
2 × 5V Power Adapters
1 × User Manual
