Production:

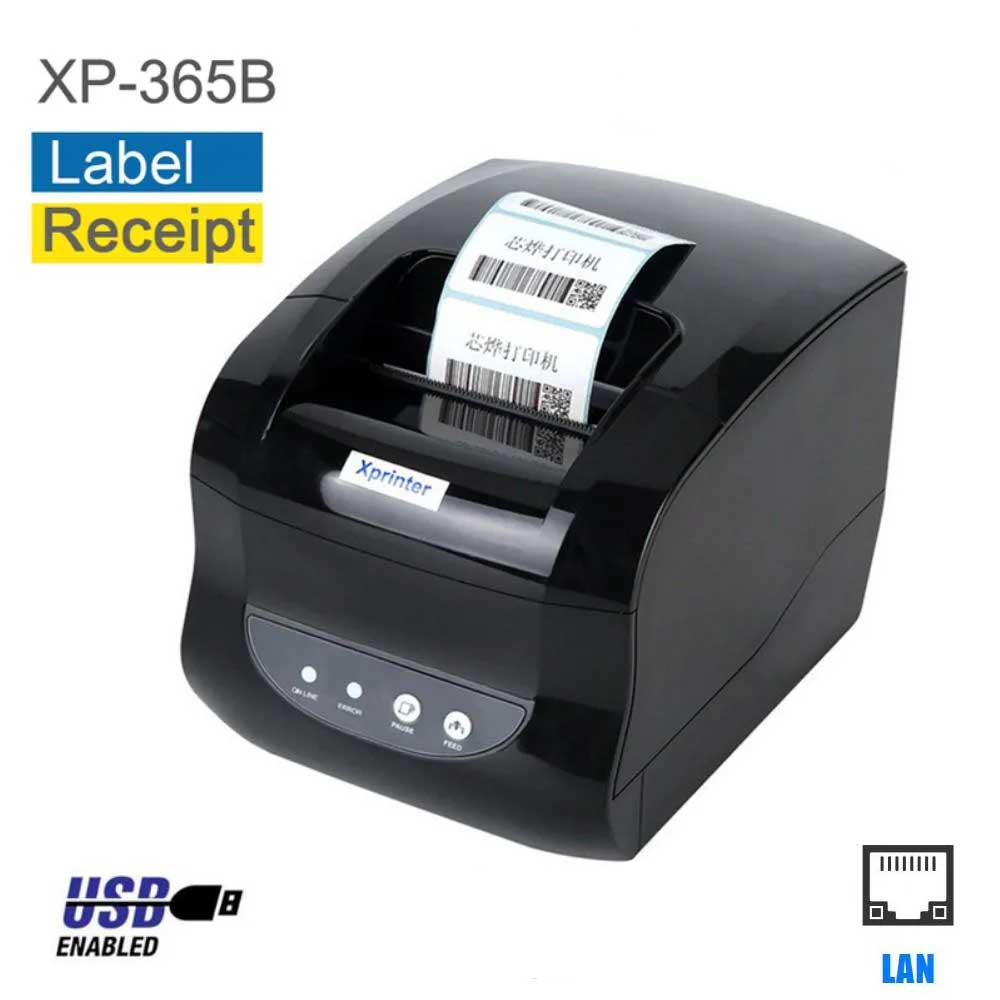

Model; XP-365B
Print mode; Label print mode
Printing Features
Resolution; 203 DPI
Printing method; Direct Thermal
Max.print speed; 127 mm/s;
Max.print width; 76 mm
Media; Media type
Thermal roll paper, thermal adhesive paper
Media width; 20~80 mm
Media thickness; 0.06 ~ 0.19 mm
Media roll diameter; Max.82 mm
Supply method; Easy Paper Loading

Performance Features
Ram; 4 M
Flash; 4 M
Interfaces; USB/USB+Lan/USB+Serial+Lan
Sensors
Print head temperature sensor/ Paper end/ Cover open / Gap
Print head temperature sensor/ Paper end/ Cover open
Drawer port
1 ports (Pin 2 for cashdrawer)
Fonts/Graphics/Symbologies
Character sizes
Commonly used in single-byte fonts; FONT 0 to FONT 8, K, TST24.BF2,TSS24.BF2
1D barcode
CODE128 €EAN128 €ITF €CODE39 €CODE39C €CODE39S €CODE93 €EAN13 €EAN13+2 €EAN13+5 €EAN8 €EAN8+2 €EAN8+5 €CODABAR €POSTNET €UPC-A €UPCA+2 €UPCA+5 €UPCE €UPCE+2 €UPCE+5 €MSI €MSIC €PLESSEY €ITF14 €EAN14
2D bar code
PDF417 €QRCODE € DataMatrix
Emulaion
TSPL
ESC/POS
Physical Features
Dimension
212*140*144mm (D*W*H)
Weight
0.94 kg
Reliability
Print head; life100 km
Software; Driver
Windows; SDK; iOS/ Android/ Windows
Power supply; Input; DC 24V/2.5A
Environmental Conditions; Operation
Environment; 45¢„ƒ Humidity:RH 20 ~ 80%
Storage environment; -40¯ 55 ¢„ƒ Humidity:93% RH

2 in 1 Model

Support Label Printing and Receipt Printing

How to change Model

In shutdown state, press and hold the PAUSE button;

Then turn it on, wait for about 5 seconds and release the button after the printer beeps;

The printer will print out the current mode:

Receipt---RECEIPT

label---LABEL;

Press the paper eject button FEED to switch the mode

After the switch is completed, restart the printer (just turn it off and on again);
