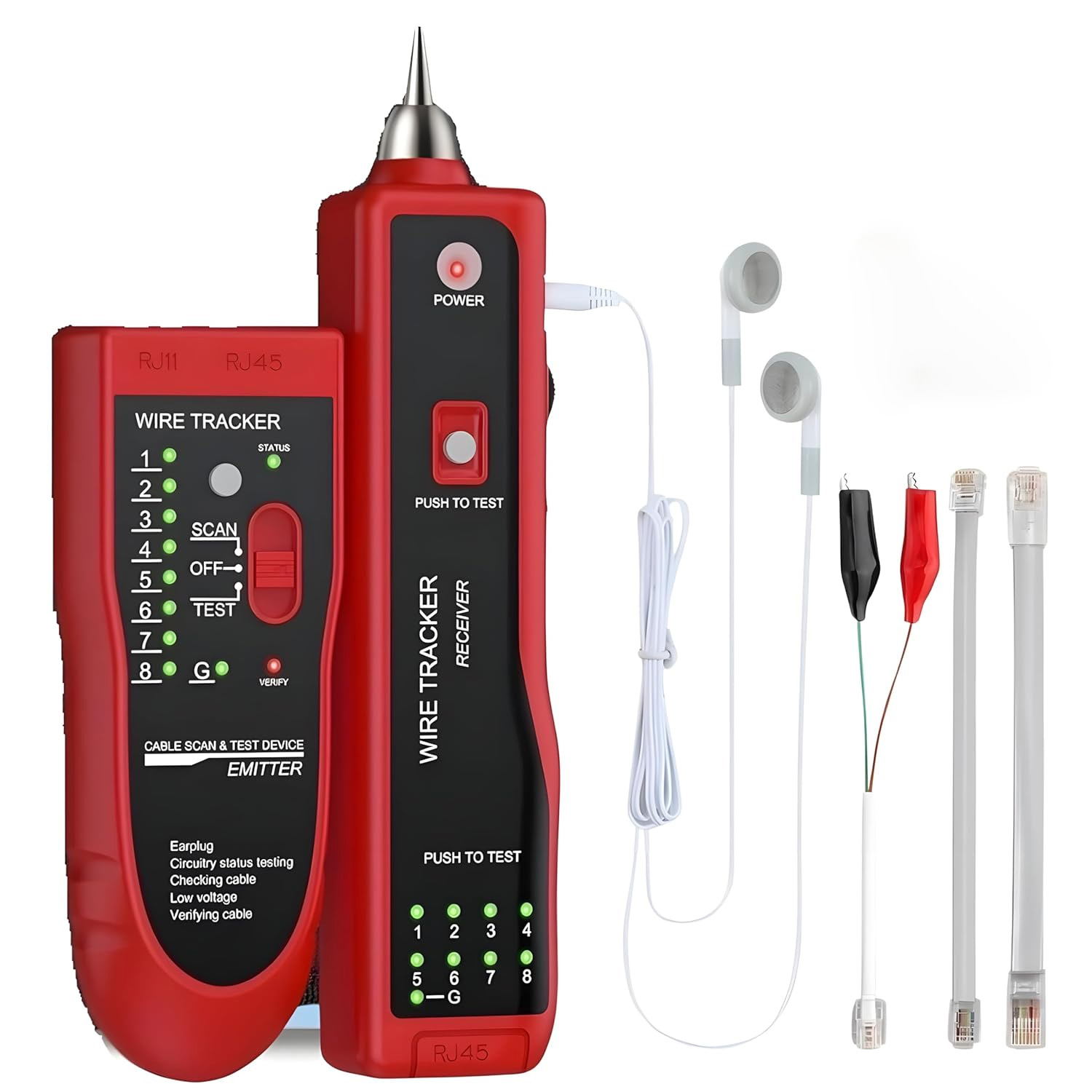

868 Network Lan Phone Tester Wire Tracker Usb Coaxial Cable Tester
Features:
1. Test open, short , cross, reverse connection and broken wire positioning.
2. Capable to measure length of network cable, coaxial cable, telephone cable and USB cable.
3. To quickly find the target wire or cable among kinds of wires.
4. Anti-interference when tracing cable on exchanger or Router.
5. Two scan modes: ordinary switch /PoE switch.
6. Functions of storage and memory for calibration data.
7. Automatic delay power on-off and backlight function.
|
SPECIFICATIONS FOR CABLE LENGTH TESTER NF-868 |
|
|
868 Transmitter specifications |
|
|
Indictor |
LCD 53x25 mm, with back light |
|
Tone frequency |
225 Hz |
|
Max. distance of transmission |
2 km |
|
Max. distance of cable map |
300m |
|
Max. working current |
Less than 70mA |
|
Tone mode |
2 Tone adjustable |
|
Compatible connectors |
RJ11ï¼ÂRJ45,Coacial, USB,BNC |
|
Max. signal voltage |
15Vp-p |
|
Function and faults LCD display |
LCD display ( wiremap, Tone, short, , No adapter, Low battery ) |
|
Cable map indication |
LCD (#1-#8) |
|
Shielded indication |
LCD ( #9) |
|
Voltage protection |
AC 60V/DC 42V |
|
Battery Type |
DC9.0Vï¼ÂNEDA 1604/6F22 DC9V x 1pcsï¼ |
|
Dimension(LxWxD) |
185x80x32mm |
|
NF-868 Receiver specifications |
|
|
Frequency |
225kHz |
|
The Max. working current |
Less than 70mA |
|
Earjack |
1 |
|
LED illumination |
2 |
|
Battery Type |
DC9.0Vï¼ÂNEDA 1604/6F22 DC9V) x1pc |
|
Dimension(LxWxD) |
218x46x29 mm |
|
NF-868 Remote unit specifications |
|
|
Compatible connectors |
RJ11ï¼ÂRJ45,Coacial, USB,BNC |
|
Dimension(LxWxD) |
107x30x24mm |
|
Transmitter specifications |
|
|
Indictor |
LCD 53x25 mm, with back light |
|
Tone frequency |
130kHz |
|
Max. working current |
Less than 70mA |
|
Tone mode |
2 Tone adjustable |
|
Compatible connectors |
RJ11,RJ45,USB,BNC |
|
Max. signal voltage |
15Vp-p |
|
Battery Type |
DC9.0Vï¼ÂNEDA 1604/6F22 DC9V x 1pcsï¼ |
|
Dimension(LxWxD) |
185x80x32mm |
|
Receiver specifications |
|
|
Frequency |
130kHz |
|
The Max. working current |
Less than 70mA |
|
Battery Type |
DC9.0Vï¼ÂNEDA 1604/6F22 DC9V) x1pc |
|
Dimension(LxWxD) |
218x46x29 mm |
|
Remote unit specifications |
|
|
Compatible connectors |
RJ11ï¼ÂRJ45,Coacial, USB,BNC |
|
Dimension(LxWxD) |
107x30x24mm |
